제품선택

GPU / DGX 사양을 확인해 보세요

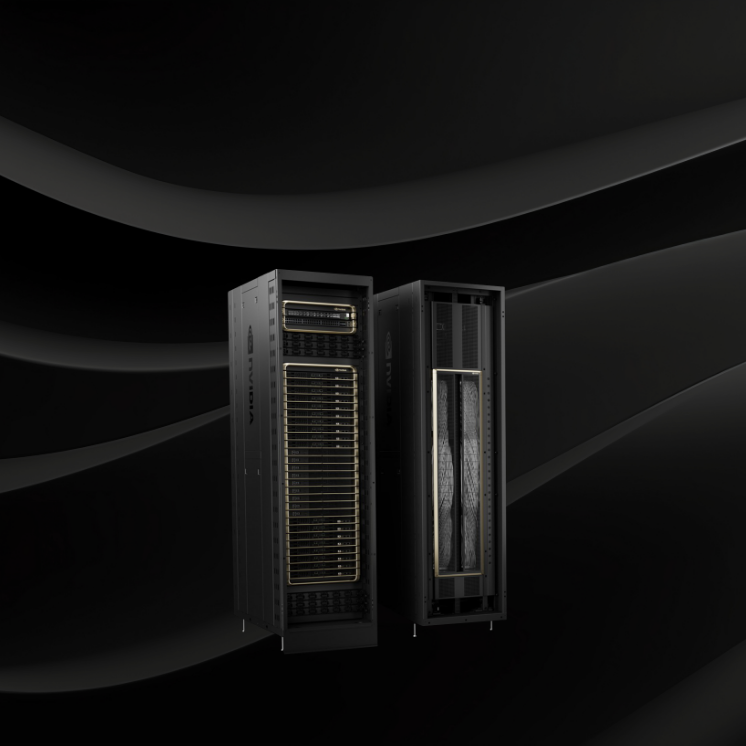

NVIDIA GB200 NVL72

생성형 AI의 새로운 시대를 지원합니다.

	GB200 NVL72	GB200 Grace Blackwell Superchip
Configuration	36 Grace CPU : 72 Blackwell GPUs	1 Grace CPU : 2 Blackwell GPU
FP4 Core²	1,440 PFLOPS	40 PFLOPS
FP8/FP6 Core²	720 PFLOPS	20 PFLOPS
INT8 Tensor Core²	720 POPS	20 POPS
FP16/BF16 Tensor Core²	360 PFLOPS	10 PFLOPS
TF32 Tensor Core²	180 PFLOPS	5 PFLOPS
FP32	6,480 TFLOPS	180 TFLOPS
FP64/FP64 Tensor Core	3,240 TFLOPS	90 TFLOPS
GPU memory bandwidth	최대 13.5TB HBM3e \| 576TB/s	최대 384GB HBM3e \| 16TB/s
NVLink memory bandwidth	130TB/s	3.6TB/s
CPU Core	2592 Arm® Neoverse V2 Core	72 Arm® Neoverse V2 Core
CPU memory Bandwith	최대 17TB LPDDR5X \| 최대 18.4TB/s	최대 480GB LPDDR5X \| 최대 512GB/s

NVIDIA GB200 NVL2

모든 데이터센터에서
컴퓨팅의 새로운 시대를 엽니다.

Form Factor	Grace CPU 2개, Blackwell GPU 2개
FP64 Tensor Core²	40 PFLOPS
FP8/FP6 Tensor Core²	20 PFLOPS
INT8 Tensor Core²	20 POPS
FP16/BF16 Tensor Core²	10 PFLOPS
TF32 Tensor Core²	5 PFLOPS
FP32	180 TFLOPS
FP64/FP64 Tensor Core	90 TFLOPS
GPU memory bandwidth	최대 384GP \| 16TB/s
CPU Core	Arm® Neoverse V2 코어 144개
LPDDRSX 메모리 \| Bandwith	최대 960GP \| 최대 1,024GB/s
Interconnect	인터커넥트 NVLink: 1.8TB/s NVLink-C2C: 2x 900GB/s PCIe Gen 6: 2x 256GB/s
Server options	NVIDIA MGX를 사용하는 다양한 NVIDIA GB200 NVL2 구성 옵션

NVIDIA H200
Tensor 코어 GPU

AI 및 HPC
워크로드 강화하기.

Form Factor	H200 SXM¹	H200 NVL¹
FP64	34 teraFLOPS	34 teraFLOPS
FP64 Tensor Core	67 teraFLOPS	67 teraFLOPS
FP32	67 teraFLOPS	67 teraFLOPS
TF32 Tensor Core	989 teraFLOPS²	989 teraFLOPS²
BFLOAT16 Tensor Core	1,979 teraFLOPS²	1,979 teraFLOPS²
FP16 Tensor Core	1,979 teraFLOPS²	1,979 teraFLOPS²
FP8 Tensor Core	3,958 teraFLOPS²	3,958 teraFLOPS²
INT8 Tensor Core	3,958 TOPS²	3,958 TOPS²
GPU memory	141GB	141GB
GPU memory bandwidth	4.8TB/s	4.8TB/s
Decoders	7 NVDEC 7 JPEG	7 NVDEC 7 JPEG
Max thermal design power (TDP)	Up to 700W (configurable)	Up to 600W (configurable)
Multi-Instance GPUs	Up to 7 MIGS @ 18GB each	Up to 7 MIGS @ 18GB each
Form factor	SXM	PCIe
Interconnect	NVLink: 900GB/s PCIe Gen5: 128GB/s	2 ウェイまたは 4 ウェイの NVIDIA NVLink ブリッジ: 900GB/秒 PCIe Gen5: 128GB/秒
Server options	GPU가 4개 또는 8개인 NVIDIA HGX H100 파트너 및 NVIDIA-Certified System™	GPU を 8 基搭載の NVIDIA MGX™ H200 NVL Partner および NVIDIA-Certified Systems
NVIDIA AI Enterprise	Add-on	同梱

NVIDIA H100
Tensor 코어 GPU

모든 데이터센터를 위한
전례 없는 성능, 확장성 보안

Form Factor	H100 SXM	H100 PCIe	H100 NVL²
FP64	34 teraFLOPS	26 teraFLOPS	68 teraFLOPs
FP64 Tensor Core	67 teraFLOPS	51 teraFLOPS	134 teraFLOPs
FP32	67 teraFLOPS	51 teraFLOPS	134 teraFLOPs
TF32 Tensor Core	989 teraFLOPS²	756 teraFLOPS²	1,979 teraFLOPs²
BFLOAT16 Tensor Core	1,979 teraFLOPS²	1,513 teraFLOPS²	3,958 teraFLOPs²
FP16 Tensor Core	1,979 teraFLOPS²	1,513 teraFLOPS²	3,958 teraFLOPs²
FP8 Tensor Core	3,958 teraFLOPS²	3,026 teraFLOPS²	7,916 teraFLOPs²
INT8 Tensor Core	3,958 TOPS²	3,026 TOPS²	7,916 TOPS²
GPU memory	80GB	80GB	188GB
GPU memory bandwidth	3.35TB/s	2TB/s	7.8TB/s³
Decoders	7 NVDEC 7 JPEG	7 NVDEC 7 JPEG	14 NVDEC 14 JPEG
Max thermal design power (TDP)	Up to 700W (configurable)	300-350W (configurable)	2x 350-400W (configurable)
Multi-Instance GPUs	Up to 7 MIGS @ 10GB each	Up to 7 MIGS @ 10GB each	Up to 14 MIGS @ 12GB each
Form factor	SXM	PCIe dual-slot air-cooled	2x PCIe dual-slot air-cooled
Interconnect	NVLink: 900GB/s PCIe Gen5: 128GB/s	NVLink: 600GB/s PCIe Gen5: 128GB/s	NVLink: 600GB/s PCIe Gen5: 128GB/s
Server options	NVIDIA HGX H100 Partner and NVIDIA-Certified Systems™ with 4 or 8 GPUs NVIDIA DGX H100 with 8 GPUs	Partner and NVIDIA-Certified Systems with 1–8 GPUs	Partner and NVIDIA-Certified Systems with 2-4 pairs
NVIDIA AI Enterprise	Add-on	Included	Included

NVIDIA A16

전례없는 VDI 사용자 경험

GPU Memory	4x 16GB GDDR6 with error-correcting code (ECC)
GPU Memory Bandwidth	4x 200 GB/s
Max power consumption	250W
Interconnect	PCI Express Gen 4 x16
Form factor	Full height, full length (FHFL) dual slot
Thermal	Passive
vGPU Software Support	NVIDIA Virtual PC (vPC), NVIDIA Virtual Applications (vApps), NVIDIA RTX Virtual Workstation (vWS), NVIDIA Virtual Compute Server (vCS), and NVIDIA AI Enterprise
vGPU Profiles Supported	See the Virtual GPU Licensing Guide See the NVIDIA AI Enterprise Licensing Guide
NVENC \| NVDEC	4x \| 8x (includes AV1 decode)
Secure and measured boot with hardware root of trust	Yes (optional)
NEBS Ready	Level 3
Power Connector	8-pin CPU

NVIDIA A10

메인스트림 엔터프라이즈 서버용
AI를 통해 가속화된 그래픽 및 영상

FP32	31.2 teraFLOPS
TF32 Tensor Core	62.5 teraFLOPS \| 125 teraFLOPS*
BFLOAT16 Tensor Core	125 teraFLOPS \| 250 teraFLOPS*
FP16 Tensor Core	125 teraFLOPS \| 250 teraFLOPS*
INT8 Tensor Core	250 TOPS \| 500 TOPS*
INT4 Tensor Core	500 TOPS \| 1,000 TOPS*
RT Core	72 RT Cores
Encode/decode	1 encoder 2 decoder (+AV1 decode)
GPU memory	24GB GDDR6
GPU memory bandwidth	600GB/s
Interconnect	PCIe Gen4 64GB/s
Form factors	Single-slot, full-height, full-length (FHFL)
Max thermal design power (TDP)	150W
vGPU software support	NVIDIA Virtual PC, NVIDIA Virtual Applications, NVIDIA RTX Virtual Workstation,NVIDIA Virtual Compute Server, NVIDIA AI Enterprise

NVIDIA A2

어떠한 서버에든 NVIDIA AI를 가져오는
엔트리 레벨급 GPU

Peak FP32	4.5 TF
TF32 Tensor Core	9 TF \| 18 TF¹
BFLOAT16 Tensor Core	18 TF \| 36 TF¹
Peak FP16 Tensor Core	18 TF \| 36 TF¹
Peak INT8 Tensor Core	36 TOPS \| 72 TOPS¹
Peak INT4 Tensor Core	72 TOPS \| 144 TOPS¹
RT Cores	10
Media engines	1 video encoder 2 video decoders (includes AV1 decode)
GPU memory	16GB GDDR6
GPU memory bandwidth	200GB/s
Interconnect	PCIe Gen4 x8
Form factor	1-slot, low-profile PCIe
Max thermal design power (TDP)	40–60W (configurable)
Virtual GPU (vGPU) software support²	NVIDIA Virtual PC (vPC), NVIDIA Virtual Applications (vApps), NVIDIA RTX Virtual Workstation (vWS), NVIDIA AI Enterprise, NVIDIA Virtual Compute Server (vCS)

NVIDIA L40S

데이터 센터를 위한
독보적인 AI 및 그래픽 성능

GPU Architecture	NVIDIA Ada Lovelace architecture
GPU Memory	48GB GDDR6 with ECC
Memory Bandwidth	864GB/s
Interconnect Interface	PCIe Gen4 x16: 64GB/s bidirectional
NVIDIA Ada Lovelace Architecture-Based CUDA® Cores	18,176
NVIDIA Third-Generation RT Cores	142
NVIDIA Fourth-Generation Tensor Cores	568
RT Core Performance TFLOPS	212
FP32 TFLOPS	91.6
TF32 Tensor Core TFLOPS	183 I 366*
BFLOAT16 Tensor Core TFLOPS	362.05 I 733*
FP16 Tensor Core	362.05 I 733*
FP8 Tensor Core	733 I 1,466*
Peak INT8 Tensor TOPS Peak INT4 Tensor TOPS	733 I 1,466* 733 I 1,466*
Form Factor	4.4" (H) x 10.5" (L), dual slot
Display Ports	4x DisplayPort 1.4a
Max Power Consumption	350W
Power Connector	16-pin

NVIDIA L4

비디오, AI 및 그래픽을 위한
획기적인 범용 가속기

FP32	30.3 teraFLOPs
TF32 Tensor Core	120 teraFLOPS*
FP16 Tensor Core	242 teraFLOPS*
BFLOAT16 Tensor Core	242 teraFLOPS*
FP8 Tensor Core	485 teraFLOPs*
INT8 Tensor Core	485 TOPs*
GPU memory	24GB
GPU memory bandwidth	300GB/s
NVENC \| NVDEC \| JPEG decoders	2 \| 4 \| 4
Max thermal design power (TDP)	72W
Form factor	1-slot low-profile, PCIe
Interconnect	PCIe Gen4 x16 64GB/s
Server options	Partner and NVIDIA-Certified Systems with 1–8 GPUs

NVIDIA DGX H100

세계적으로 입증된 엔터프라이즈 AI

GPUs	8x NVIDIA H100 Tensor Core GPUs
GPU memory	640GB total
Performance	32 petaFLOPS FP8
NVIDIA® NVSwitch™	4x
System power usage	10.2kW max
CPU	Dual Intel® Xeon® Platinum 8480C Processors 112 Cores total, 2.00 GHz(Base), 3.80 GHz (Max Boost)
System memory	2TB
Networking	4x OSFP ports serving 8x single-port NVIDIA ConnectX-7 VPI > Up to 400Gb/s InfiniBand/Ethernet 2x dual-port QSFP112 NVIDIA ConnectX-7 VPI > Up to 400Gb/s InfiniBand/Ethernet
Management Networking	10Gb/s onboard NIC with RJ45 100Gb/s Ethernet NIC Host baseboard management controller (BMC) with RJ45
Storage	OS: 2x 1.92TB NVMe M.2
Internal storage	8x 3.84TB NVMe U.2
Software	NVIDIA AI Enterprise – Optimized AI software NVIDIA Base Command – Orchestration, scheduling, and cluster management DGX OS / Ubuntu / Red Hat Enterprise Linux / Rocky – Operating System
Support	Comes with 3-year business-standard hardware and software support
System weight	287.6lbs (130.45kgs)
Packaged system weight	376lbs (170.45kgs)
System dimensions	Height: 14.0in (356mm) Width: 19.0in (482.2mm) Length: 35.3in (897.1mm)
Operating temperature range	5–30°C (41–86°F)
